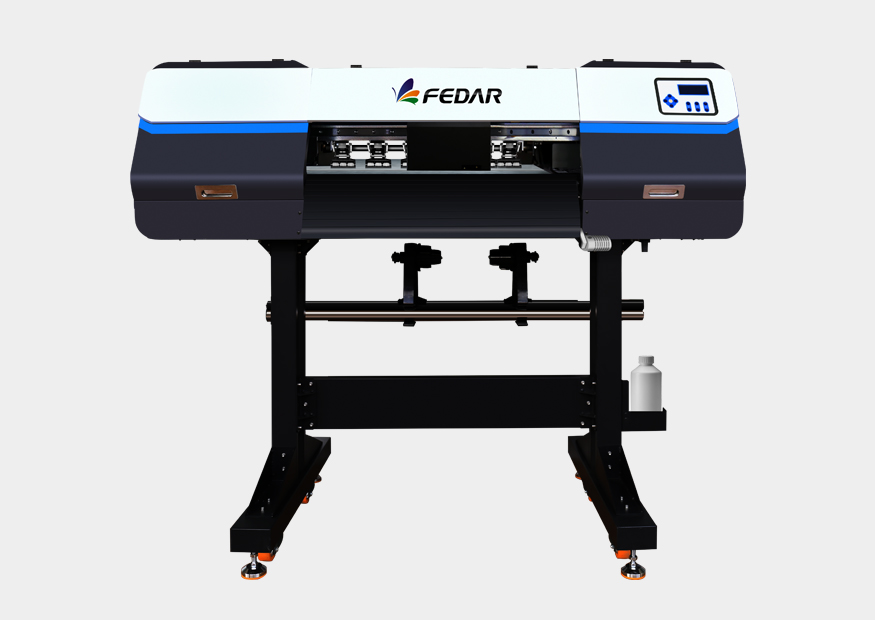

Model: Fedar FD70 DTF Printer
Printing Width: 700mm
Max Resolution: 3200DPI
Print Head: 2 Epson I3200-A1
Printing Speed: 12 Sqm/Hr (2 pass)
|
Model |
Fedar FD70-2 DTF Printer |
FD70-4 DTF Printer |
| Printing Size | 700mm | 700mm |
| Printhead | 2 EPSON Original I3200-A1 | 4 EPSON Original I3200-A1 |
| Ink Color |
C M Y K + W |
C M Y K + W |
|
Ink Type |
Water-Based Ink, Pigment Ink |
Water-Based Ink, Pigment Ink |
|
RIP Software |
MAINTOP6.0, PHOTOPRINT, ONYX, NEOSTAMPA |
MAINTOP6.0, PHOTOPRINT, ONYX, NEOSTAMPA |
| Interface | USB2.0 USB3.0 | USB2.0 USB3.0 |
|
Print File Format |
BMP, TIF, JPG, PDF Etc. | BMP, TIF, JPG, PDF Etc. |
| Heating System |
Extra Front Heating System |
Extra Front Heating System |
|
Feeding Method |
Roll to Roll, Leaf |
Roll to Roll, Leaf |
| Color Management | ICC Based; Density & Curves Adjustable | ICC Based; Density & Curves Adjustable |
| Power Supply |
50HZ/60HZ, 220V, 10A |
50HZ/60HZ, 220V, 10A |
| Dimension (L*W*H) | 1200*960*1000mm | 1200*960*1000mm |
| Gross Weight | 100KG | 100KG |
| Working Environment Temperature | 20C-35C (68F-95F) | 20C-35C (68F-95F) |
| Working Environment Humidity | 35%-65%Rh | 35%-65%Rh |
|
Printing Speed
|
4 PASS 12 Sqm/H
6 PASS 10 Sqm /H
|
4 PASS 28 Sqm/H
6 PASS 14 Sqm /H
|
DETAILS:
Fedar FD70 70cm DTF Printer uses double Epson Original I3200-A1 Print Heads. Max Printing Width: 650mm. Max Resolution: 3200DPI. Max Production Capacity: 12 Sqm/Hr

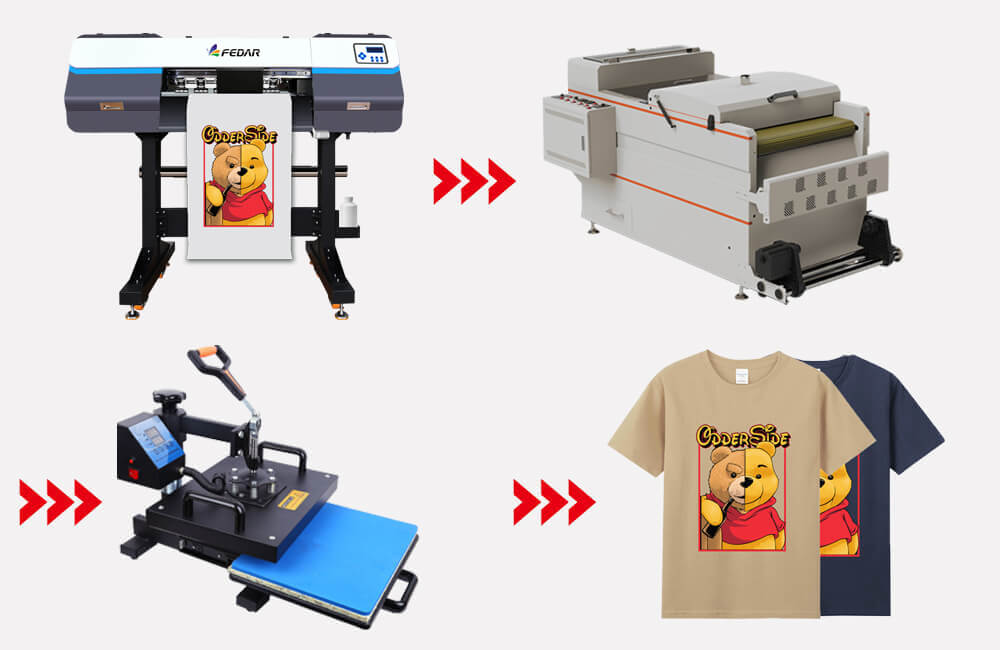

No need the plate making, easily to produce
Fedar FD70 DTF PrintER can be widely used different kinds of fabrics, leather, bags, shoes and hats, clothing, socks, masks, gloves, umbrellas, plush toys, knitted underwear, swimwear, and other textile and fiber crafts, etc.

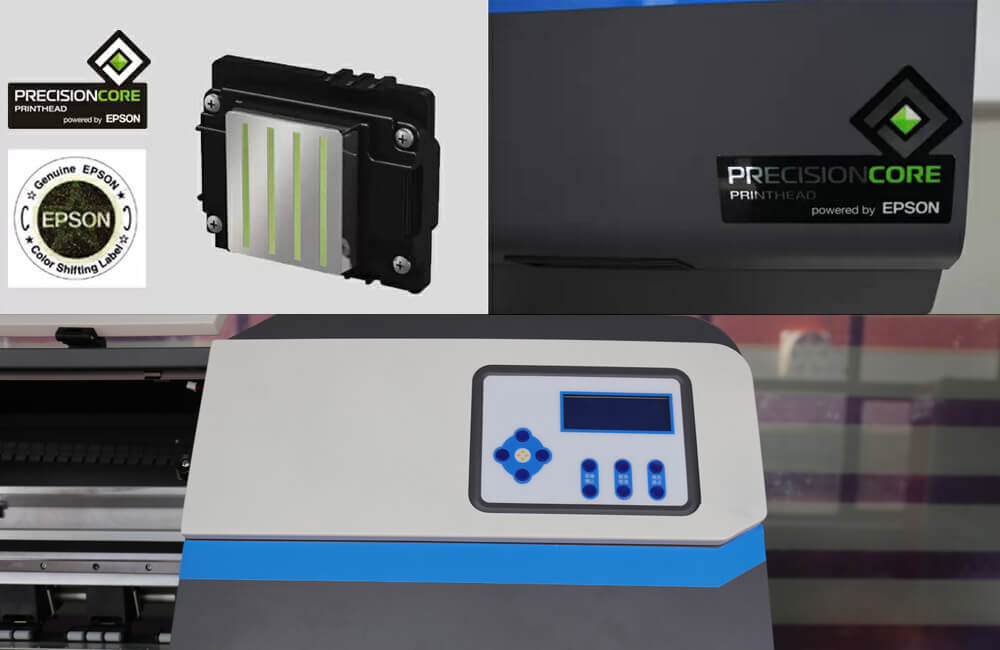

Fedar FD70 DTF Printer use Original Epson I3200-A1 Heads. Precision Core print head has proven high durability and extended service life. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently.

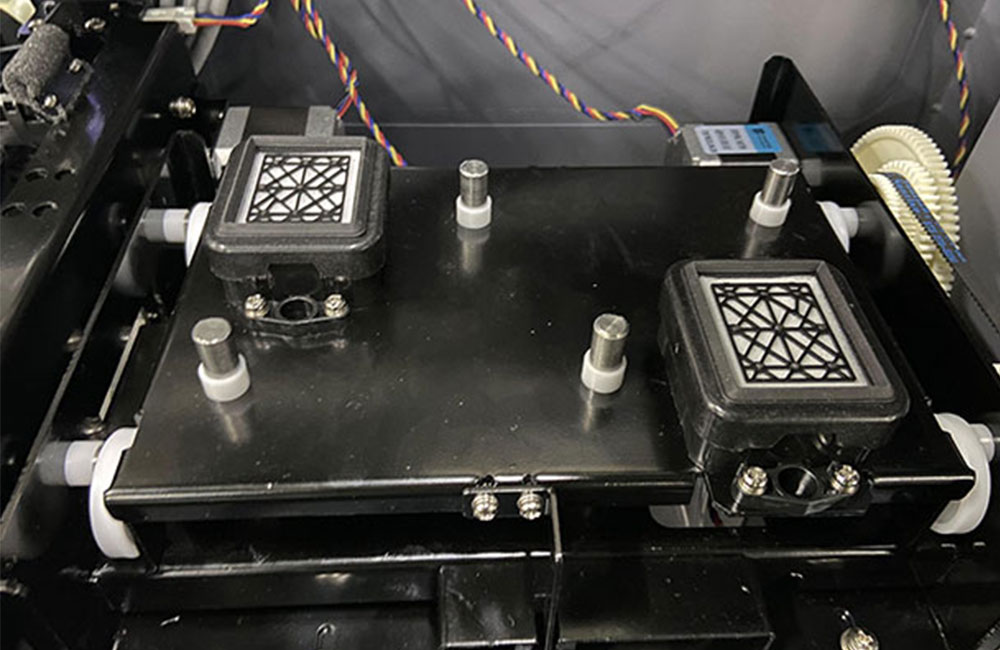

Capping Station of Fedar FD70 DTF Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient.
Fedar FD70 70cm DTF Printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.
Fedar FD60 70cm DTF Printer core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.
Fedar FD70 DTF Printer uses assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.
Easy Use
Universal Matching
Suit for Digital PET Film Print
Offset Print Transfer, One-Time Forming
No Need Cut, No Need Tear, Less Manpower
Fedar FD70 DTF PrintER can be widely used different kinds of fabrics, leather, bags, shoes and hats, clothing, socks, masks, gloves, umbrellas, plush toys, knitted underwear, swimwear, and other textile and fiber crafts, etc.
Pigment Ink
DTF Hot Melt Film
TPU Hot Melt Shaking Powder
Model: Fedar FD70 DTF Printer
Printing Width: 700mm
Print Head: Two Epson I3200-A1 Heads
Printing Speed: 4pass: 12 Sqm/Hr
6pass: 10 Sqm/Hr
Interface: Gigabit LAN
Print Media: PET Film
Drying Method: Extra Dryer Device
RIP Software: Maintop, Onyx, Photo Print
Ink Supply Method : Bulk Ink Supply System
Printing File Forms: TIFF, JPG, EPS, PDF, etc.
Media Transfer: Auto Taking-Up Media Device
Ink Type: Pigment Ink
