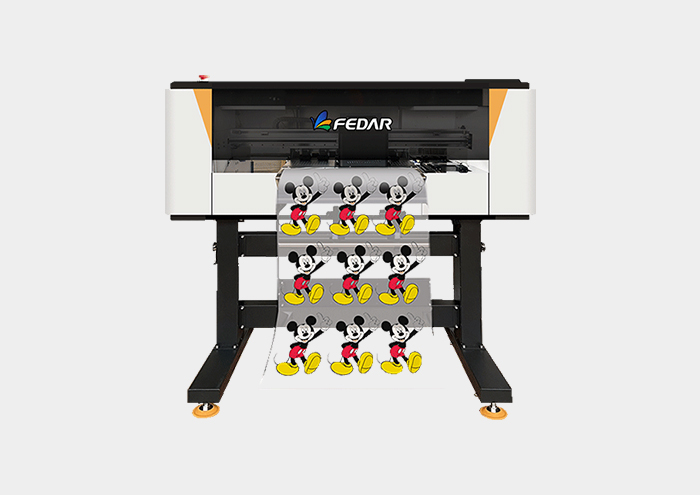

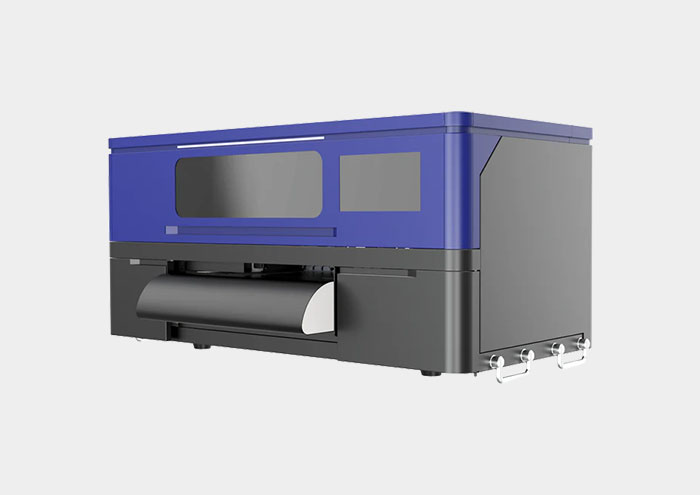

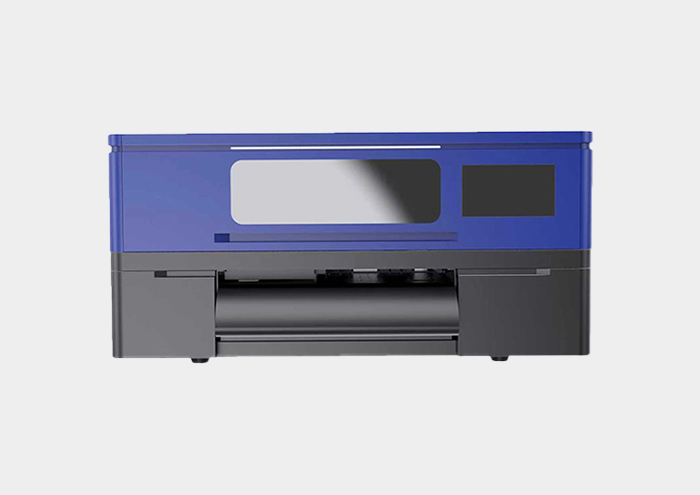

FD30 30cm DTF Printer

Model: Fedar FD30 30cm DTF Printer

Print Head: 2 Epson Original F1080-A1 Heads

Max Printing Width: 300mm

Max Speed: 4m²/h

product overview

    TECHNICAL DATA:

    Medol FD30(double-head)
     Printhead  Type: EPSON F1080-A1  Quantity: 2
    Print Width 300mm
    Print Speed
        6 PASS:4m²/h
    8 PASS:3m²/h
    Ink Color C M Y K + W
    Ink Type    Pigment Ink
    RIP Software    Maintop, FlexiPRINT
    Transmit Port      Ethernet
    Print Media  Pet Film
    Print File Format    TIF, JPG, PDF Etc.
    System Configuration   WIN7/WIN10, HARD DISK: 500G or more, GPU: ATI Discrete GPU Memory: 8G or more, CPU: Intel i5 Processor
    Working Environment  Temp: 18C-30C  Humidity: 35%-65%
    Power 50HZ/60HZ, 220V, 10A
    Package Size 1200*650*620mm
    Gross Weight  100KG

    DETAILS:

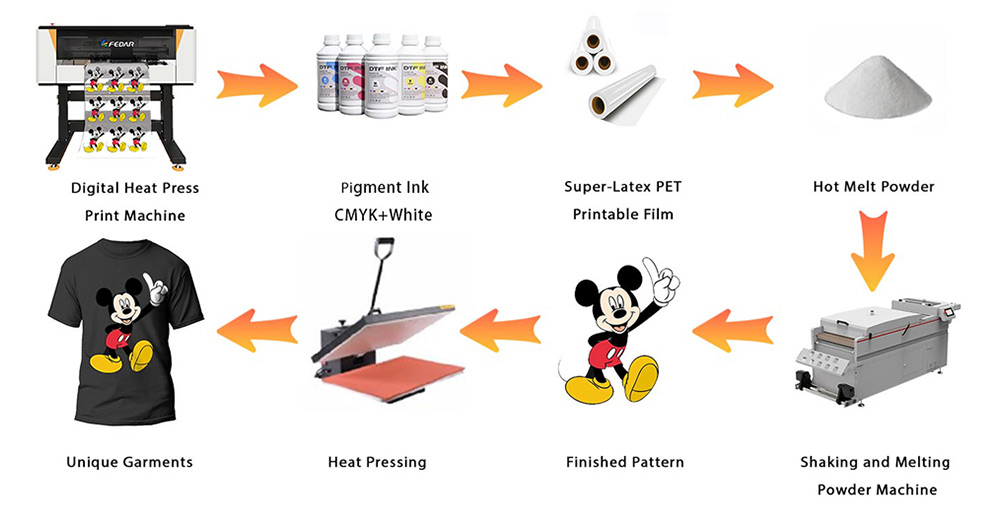

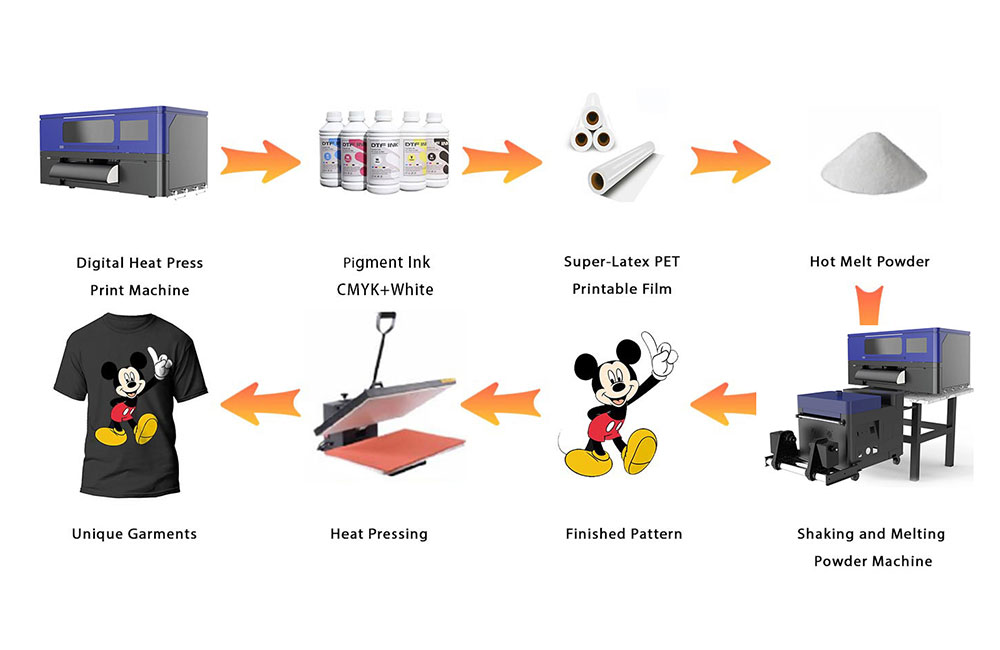

    • FEDAR DTF PRINTER transfer PROCESS

      Fedar FD30 30cm DTF Printer uses double Epson Original F1080-A1 Print Heads. Max Printing Width: 300mm. Max Production Capacity: 4 Sqm/Hr

    • FEDAR DTF PRITNER USEAGE

      Fedar FD30 DTF PrintER can be widely used in different kinds of fabrics, leather, bags, shoes and hats, clothing, socks, masks, gloves, umbrellas, plush toys, knitted underwear, swimwear, and other textile and fiber crafts, etc

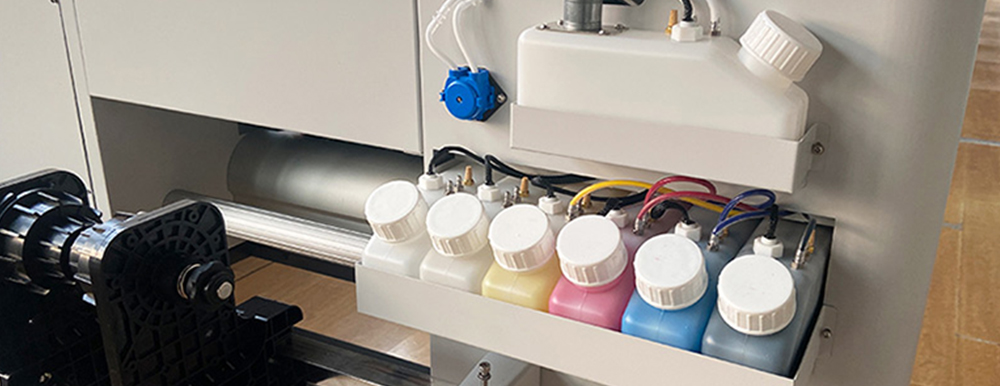

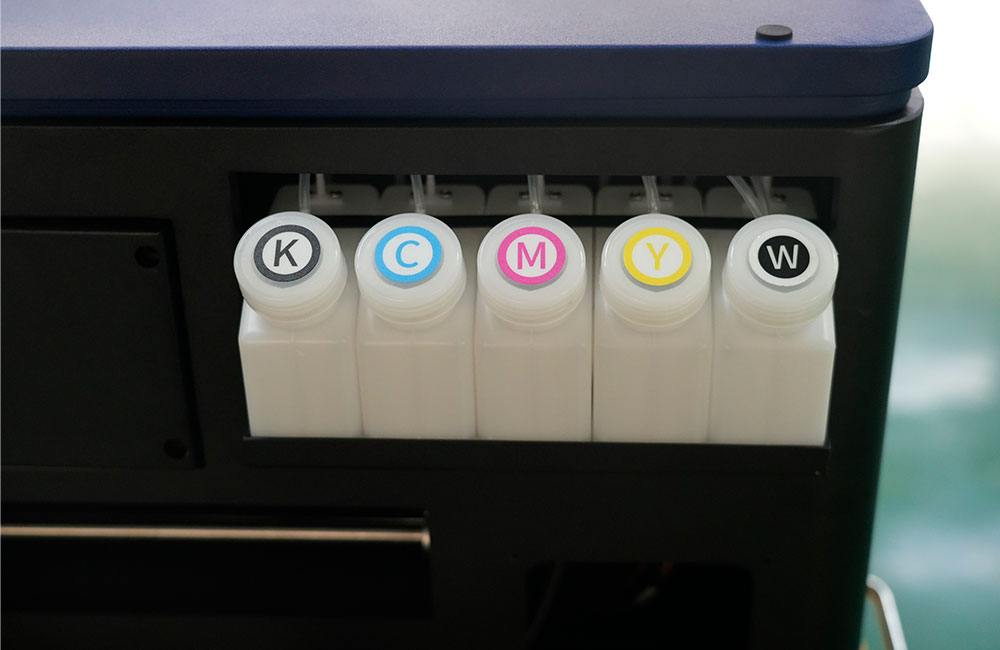

    • FEDAR FD30 DTF PRINTER Ink Tank

      Fedar FD30 30cm DTF Printer uses four 3L super-large-capacity ink tanks with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

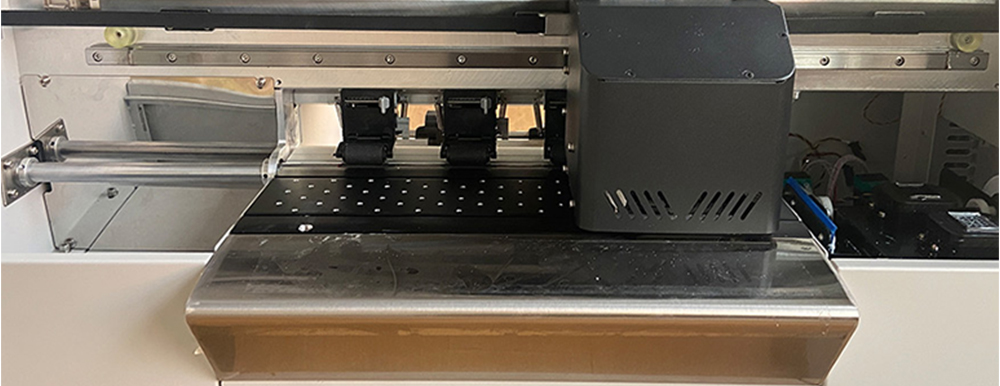

    • lmport Fluororubber Pinch Rollers

      Reduce static and ink misting, ensure printing quality, and reject the outputs of media wrinkles.
