FD1912S (12 heads*1900mm)

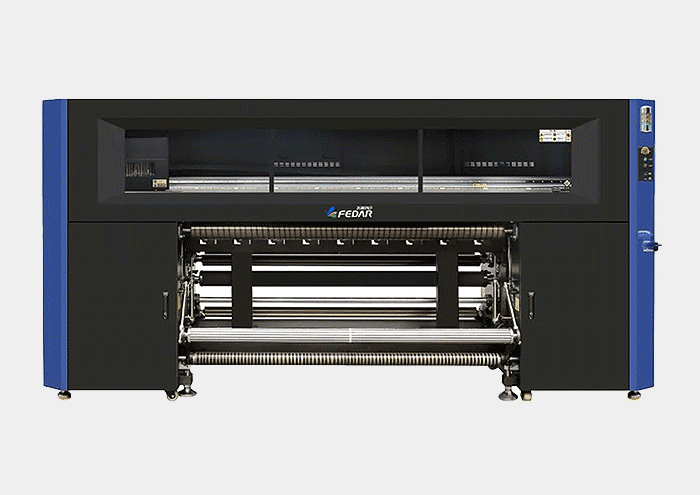

Model: Fedar FD1912S Sublimation Printer

Max Printing Width: 1900mm

Printer Head: 12 Epson I3200-A1

Max Printing Resolution: 3200DPI

Max Printing Speed: 1100 Sqm/h (Single Pass)

product overview

    TECHNICAL DATA:

    Model

    Fedar FD1912S Sublimation Printer

    Printing Size 1900mm
    Printing Speed 300*600dpi 1PASS:1100㎡/h   300*1200dpi 2PASS:620㎡/h
    300*1800dpi 3PASS:410㎡/h   300*2400dpi 4PASS:310㎡/h
    Printhead  12 EPSON Original I3200-A1 Heads
    Max Resolution 3200DPI
    Ink Color

    Double C M Y K

    Ink Type

    Water-Based Ink, Pigment Ink, Sublimation Ink

    RIP Software

    MAINTOP6.0, PHOTOPRINT, ONYX, NEOSTAMPA

    Interface Gigabit Port

    Print File Format

    BMP, TIF, JPG, PDF Etc.
    Heating System

    Extra Front Heating System

    Feeding Method

    Roll to Roll, Leaf

    Color Management ICC Based; Density & Curves Adjustable
    Power Supply

    50HZ/60HZ, 110~220V, 10A

    Gross Weight 600KGS
    Working Environment Temperature 18℃-30℃ ,Humidity:35%-65%
    Powder Supply

     Printer Input Voltage: 220VAC Dryer Input Voltage:380VAC

    Machine Printing Power:21.5kw  Dryer: Max 14.5KW

    Working Size (L*W*H)


    Dimension:4000*1835*1880mm10000m

    Media Feeding & Take-up Unit: 2600*1065*1120mm

    Print Unit Packing: 4150*1370*2140mm
    Base Unit Packing: 2700*1100*1365mm

    DETAILS:

    • Print Head of Fedar FD1912S Printer

      Fedar FD1912S Sublimation Printer uses 12 Original Epson I3200-A1 Print Heads. Max Resolution: 3200DPI. The printing speed can be more than 1100 Sqm/hr, it uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite.

    • Capping Station of Fedar FD1912S Printer

      Fedar FD1912S sublimation printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient.

    • Printing Carriage of Fedar FD1912S Printer

      The height of the double-head nozzle independently developed can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

    • FD1912S Sublimation Printer High-precision Platform

      Fedar FD1912S sublimation printer printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

    • FD1912S Sublimation Printer Ink Tank

      Fedar FD1912S sublimation printer uses four super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

    • Fedar Printer Ink Shortage Alarm System

      Fedar FD1912S Sublimation Printer use Fedar ink shortage system, reduces the tediousness of frequently checking the remaining ink, and promptly reminds to add ink to ensure the continuity of printing work.

    • Fedar FD1912S Printer use Stable Fedar Printing System

      Fedar FD1912S uses Stable Fedar Printing System. The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

    • Fedar FD1912S Printer use Heavy Type Feeding and Taking-up Device

      Fedar FD1912S use Haevy Type Feeding and Taking-up device with tension sensor bar ,make the force even and make the paper more smooth. It's sample and convenient to take up printed media.

    • FeDAR FD1912S Printer Intelligent Dry System

      Dry System of Fedar FD1912S sublimation printer of synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.

    • Industrial Design of Fedar FD1912S Sublimation Printer

      Fedar FD1912S Sublimation Printer frame is welded with square steel, industrial grade design, the whole structure is strong and stable, which ensures that the equipment is stable and does not shake during the high-speed printing process.

    • Technical Parameters

      Model: Fedar FD1912S Sublimation Printer
      Printing Width: 1900mm
      Print Head: 12 Epson 3200 Heads
      Printing Speed: 1pass: 1100 Sqm/Hr
      2pass: 620 Sqm/Hr
      Interface: Gigabit LAN
      Print Media: Transfer Paper
      Drying Method: Extra Dryer Device
      RIP Software: Maintop, Onyx, Photo Print
      Ink Supply Method : Bulk Ink Supply System
      Printing File Forms: TIFF, JPG, EPS, PDF, etc.
      Ink Type: Sublimation Ink, Water Based Dye Ink
      Media Transfer: Auto Tension Taking-Up Media Device
