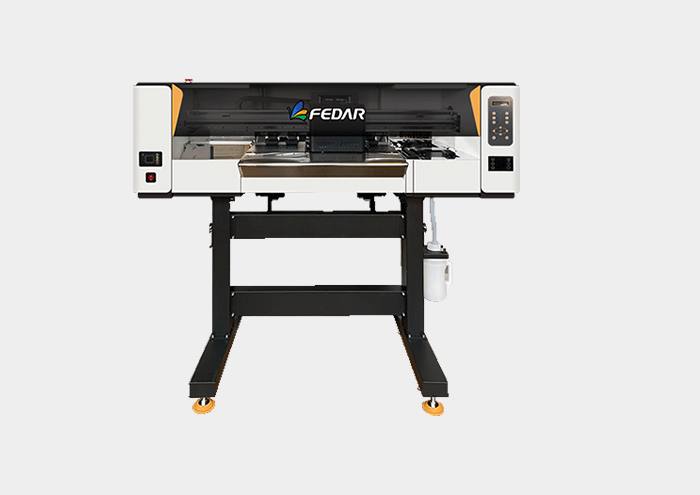

FD60 60cm DTF Printer

Model: Fedar FD60 60cm DTF Printer

Print Head: 2 Epson Original I3200-A1 Heads

Max Printing Width: 600mm

Max Speed: 6 pass:8 m²/h

product overview

    TECHNICAL DATA:

    Medol FD60(double-head)
     Printhead  Type: EPSON I3200-A1  Quantity: 2
    Print Width 600mm
    Print Speed
        6 PASS:8m²/h
    8 PASS:6m²/h
    Ink Color C M Y K + W
    Ink Type    Pigment Ink
    RIP Software    Maintop, FlexiPRINT
    Transmit Port      Ethernet
    Print Media  Pet Film
    Print File Format    TIF, JPG, PDF Etc.
    System Configuration   WIN7/WIN10, HARD DISK: 500G or more, GPU: ATI Discrete GPU Memory: 8G or more, CPU: Intel i5 Processor
    Working Environment  Temp: 18C-30C  Humidity: 35%-65%
               Power              50HZ/60HZ, 220V, 10A
    Package Size 1760*1000*750mm
    Gross Weight  210KG

    DETAILS:

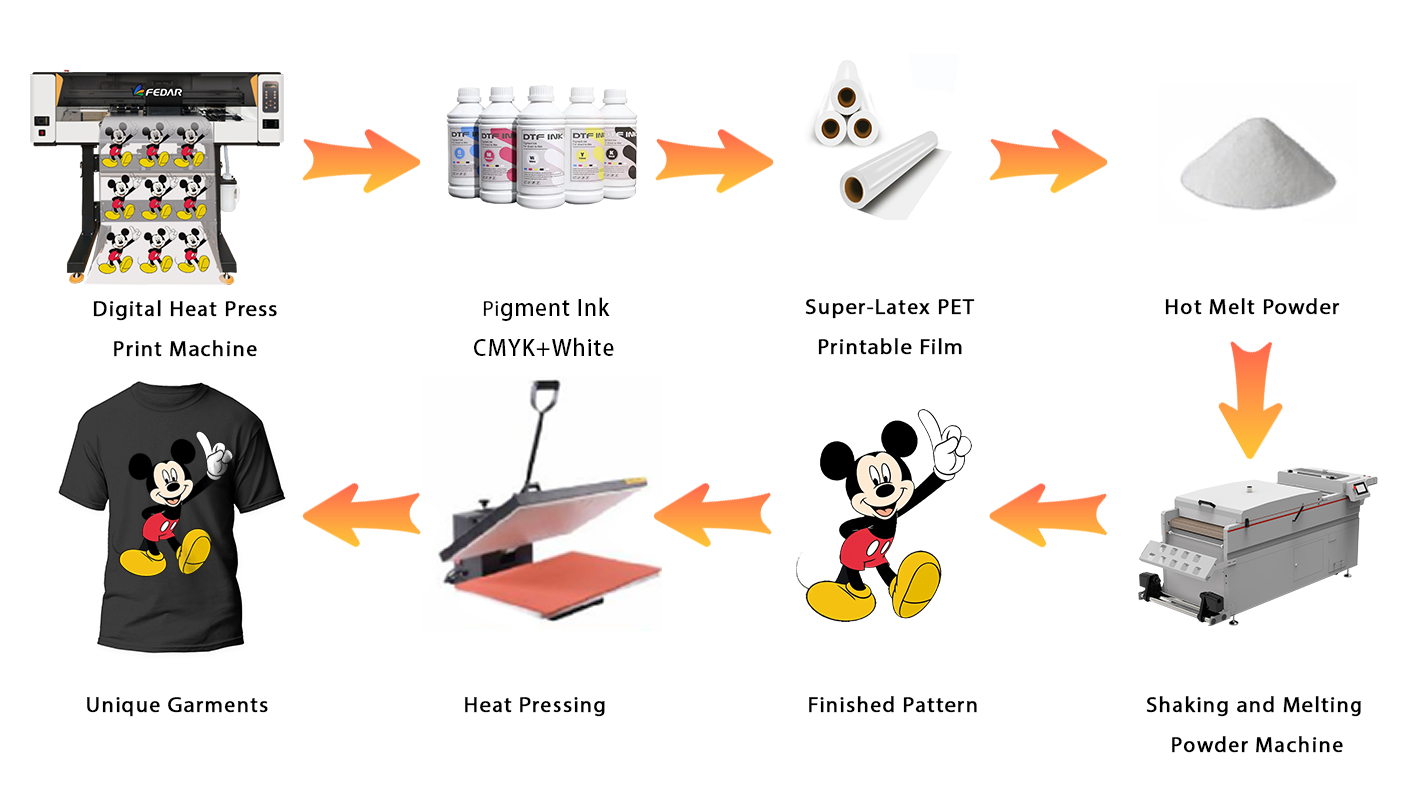

    • dtf printer printing process

      FEDAR DTF PRINTER TRANSFER PROCESS

      Fedar FD60 60cm DTF Printer uses double Epson Original I3200-A1 Print Heads. Max Printing Width: 600mm. Max Resolution: 3200DPI. Max Production Capacity: 8 Sqm/Hr

    • FEDAR DTF PRITNER USEAGE

      FEDAR DTF PRITNER USEAGE

      No need the plate making, easily to produce
      Fedar FD60 DTF PrintER can be widely used different kinds of fabrics, leather, bags, shoes and hats, clothing, socks, masks, gloves, umbrellas, plush toys, knitted underwear, swimwear, and other textile and fiber crafts, etc.

    • Fedar FD60 DTF Printer With Original Epson I3200-A Head

      Fedar FD60 DTF Printer With Original Epson I3200-A Head

      Fedar FD60 DTF Printer use Original Epson I3200-A1 Heads. Precision Core print head has proven high durability and extended service life. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently.

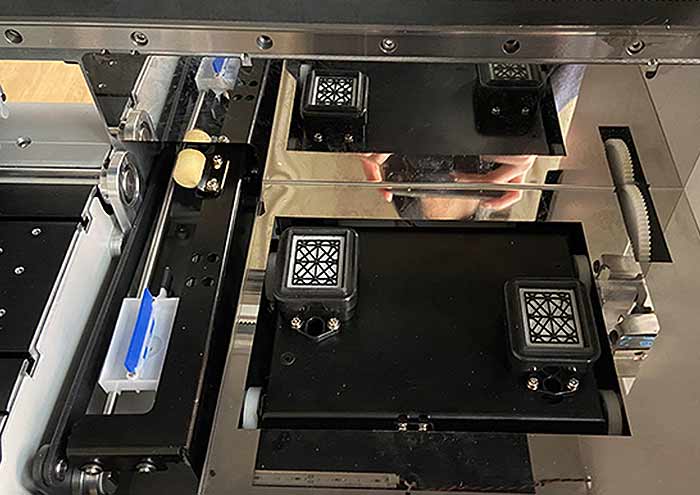

    • Capping Station of Fedar FD60 DTF Printer

      Capping Station of Fedar FD60 DTF Printer

      Capping Station of Fedar FD60 DTF Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient.

    • FEDAR FD60 DTF PRINTER Ink Tank

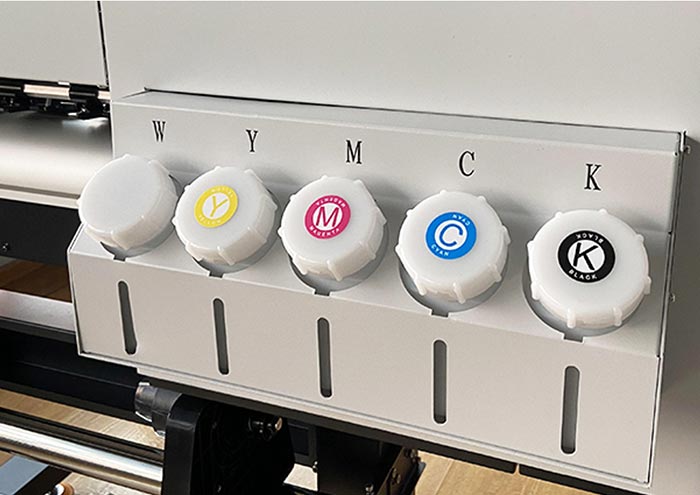

      FEDAR FD60 DTF PRINTER Ink Tank

      Fedar FD60 60cm DTF Printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

    • INDUSTRIAL DESIGN of FEDAR FD60 DTF PRITNER

      INDUSTRIAL DESIGN of FEDAR FD60 DTF PRITNER

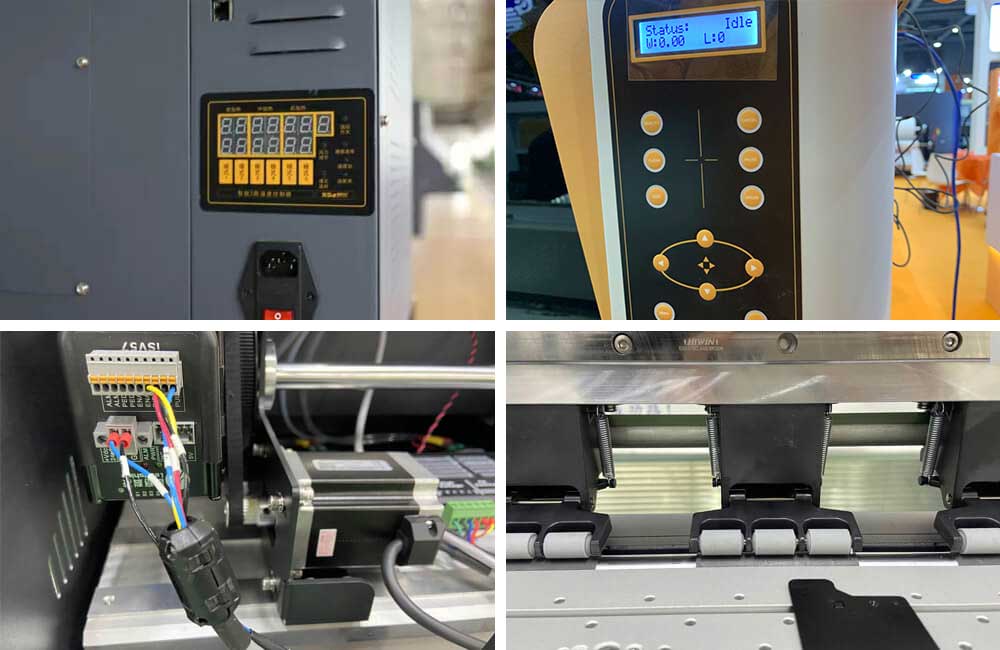

      Fedar FD60 60cm DTF Printer core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

    • High-Precision Platform of Fedar FD60 DTF Printer

      High-Precision Platform of Fedar FD60 DTF Printer

      Fedar FD60 DTF Printer uses assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

    • POWDER SHAKING MACHINE of Fedar FD60 DTF PRINTER

      POWDER SHAKING MACHINE of Fedar FD60 DTF PRINTER

      Easy Use

      Universal Matching

      Suit for Digital PET Film Print

      Offset Print Transfer, One-Time Forming

      No Need Cut, No Need Tear, Less Manpower

    • dtf printer application

      Fedar FD60 DTF PRITNER WKROING SENSE

      Fedar fd60 DTF PrintER can be widely used different kinds of fabrics, leather, bags, shoes and hats, clothing, socks, masks, gloves, umbrellas, plush toys, knitted underwear, swimwear, and other textile and fiber crafts, etc.

    • Fedar FD60 DTF printer Consumables

      Pigment Ink

      DTF Hot Melt Film

      TPU Hot Melt Shaking Powder

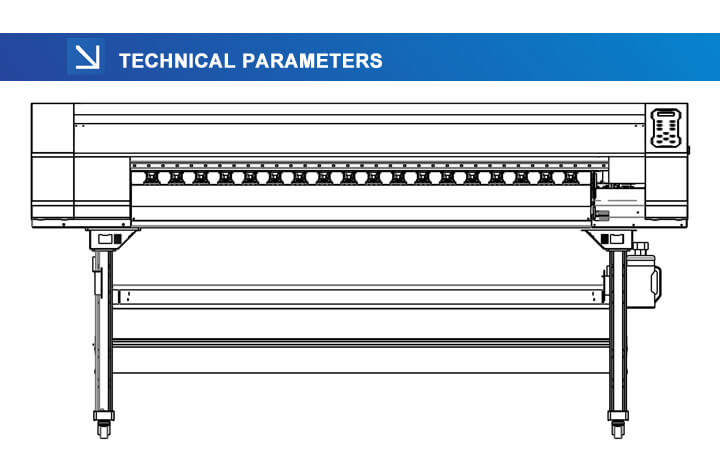

    • Technical Parameters

      Model: Fedar FD60 DTF Printer
      Printing Width: 600mm
      Print Head: Two Epson I3200-A1 Heads
      Printing Speed: 6pass: 8 Sqm/Hr   8pass: 6 Sqm/Hr
      Interface: Gigabit LAN
      Print Media: PET Film
      Drying Method: Extra Dryer Device
      RIP Software: Maintop, Onyx, Photo Print
      Ink Supply Method : Bulk Ink Supply System
      Printing File Forms: TIFF, JPG, EPS, PDF, etc.
      Media Transfer: Auto Taking-Up Media Device
      Ink Type: Pigment Ink
