FD65 65cm DTF Printer

Model: Fedar FD65 DTF Printer

Printing Width: 650mm

Max Resolution: 3200DPI

Print Head: 2 Epson I3200-A1

Printing Speed: 12 Sqm/Hr (2 pass)

product overview

    Model

    Fedar FD65 DTF Printer

    Printing Size 650mm
    Printhead  2 EPSON Original I3200-A1 Heads
    Max Resolution 3200DPI
    Ink Color

    Double C M Y K

    Ink Type

    Water-Based Ink, Pigment Ink, Sublimation Ink

    RIP Software

    MAINTOP6.0, PHOTOPRINT, ONYX, NEOSTAMPA

    Interface Gigabit Port

    Print File Format

    BMP, TIF, JPG, PDF Etc.
    Heating System

    Extra Front Heating System

    Feeding Method

    Roll to Roll, Leaf

    Color Management ICC Based; Density & Curves Adjustable
    Power Supply

    50HZ/60HZ, 110~220V, 10A

    Package Size (L*W*H) 1200*960*1000mm
    Gross Weight 100KGS
    Working Environment Temperature 20C-35C (68F-95F)
    Working Environment Humidity 35%-65%Rh
    Printing Speed
    4pass  12Sqm/H
    6pass  105Sqm/H

    DETAILS:

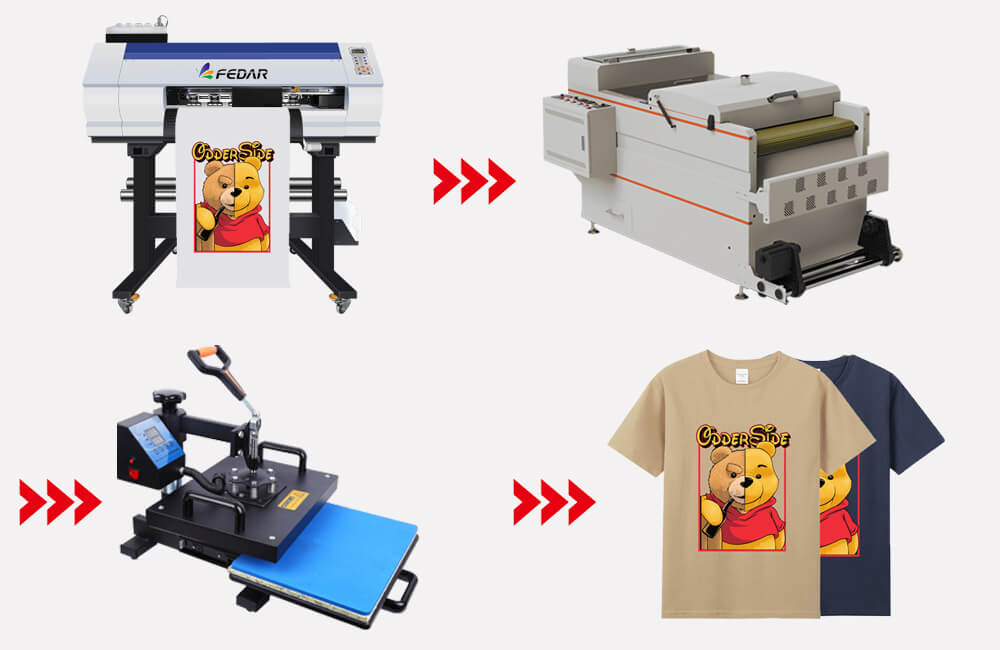

    • FEDAR DTF PRINTER transfer PROCESS

      Fedar FD65 65cm DTF Printer uses double Epson Original I3200-A1 Print Heads. Max Printing Width: 650mm. Max Resolution: 3200DPI. Max Production Capacity: 12 Sqm/Hr

    • FEDAR DTF PRITNER USEAGE

      No need the plate making, easily to produce
      Fedar FD65 DTF PrintER can be widely used different kinds of fabrics, leather, bags, shoes and hats, clothing, socks, masks, gloves, umbrellas, plush toys, knitted underwear, swimwear, and other textile and fiber crafts, etc.

    • Fedar FD65 DTF Printer With Original Epson I3200-A Head

      Fedar FD65 DTF Printer use Original Epson I3200-A1 Heads. Precision Core print head has proven high durability and extended service life. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently.

    • Capping Station of Fedar FD65 DTF Printer

      Capping Station of Fedar FD65 DTF Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient.

    • FEDAR FD65 DTF PRINTER Ink Tank

      Fedar FD65 65cm DTF Printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

    • INDUSTRIAL DESIGN of FEDAR FD65 DTF PRITNER

      Fedar FD65 65cm DTF Printer core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

    • High-Precision Platform of Fedar FD65 DTF Printer

      Fedar FD65 DTF Printer uses assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

    • POWDER SHAKING MACHINE of Fedar FD65 DTF PRINTER

      Easy Use

      Universal Matching

      Suit for Digital PET Film Print

      Offset Print Transfer, One-Time Forming

      No Need Cut, No Need Tear, Less Manpower

    • Fedar fd65 DTF PRITNER WKROING SENSE

      Fedar fd65 DTF PrintER can be widely used different kinds of fabrics, leather, bags, shoes and hats, clothing, socks, masks, gloves, umbrellas, plush toys, knitted underwear, swimwear, and other textile and fiber crafts, etc.

    • Fedar fd65 dtf printer Consumables

      Pigment Ink

      DTF Hot Melt Film

      TPU Hot Melt Shaking Powder

    • Technical Parameters

      Model: Fedar FD65 DTF Printer
      Printing Width: 650mm
      Print Head: Two Epson I3200-A1 Heads
      Printing Speed: 4pass: 12 Sqm/Hr
                                   6pass: 10 Sqm/Hr
      Interface: Gigabit LAN
      Print Media: PET Film
      Drying Method: Extra Dryer Device
      RIP Software: Maintop, Onyx, Photo Print
      Ink Supply Method : Bulk Ink Supply System
      Printing File Forms: TIFF, JPG, EPS, PDF, etc.
      Media Transfer: Auto Taking-Up Media Device
      Ink Type: Pigment Ink
