FD1862E

Fedar FD1862E Digital Textile Belt Printer uses 6 Epson 3200 printing heads. This head has automatic cleaning and automatic flash spray function to prevent blockage. In production mode, 4pass 360*1800DPI can print 92 square meters per hour

product overview
    • Print Head

      Fedar FD1862E Digital Textile Belt Printer uses 6 Epson 3200 printing heads. This head has automatic cleaning and automatic flash spray function to prevent blockage. In production mode, 4pass 360*1800DPI can print 92 square meters per hour, and the maximum speed can be 160 square meters per hour. It has 4 rows and 8 channels, each channel has 400 nozzle holes, and there are 3200 nozzle holes in total. Maximum resolution: 3200DPI.

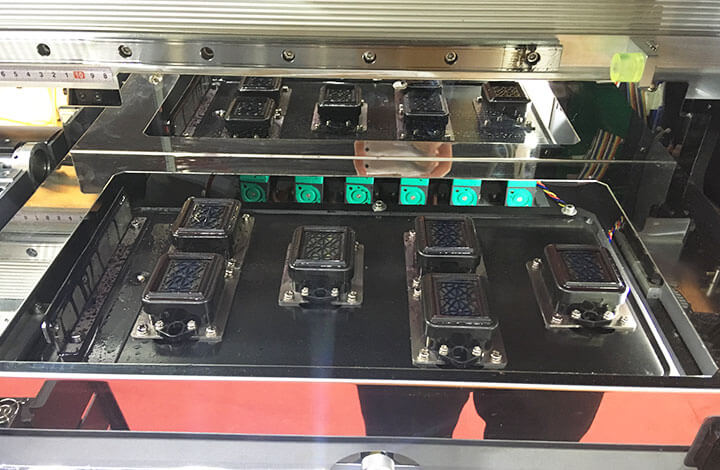

    • Capping Station

      FD1862E Digital Textile Belt Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, more convenient operation and maintenance.

    • Low Cost Printing

      The cost performance of FD1862E Digital Textile Belt Printer is super high. The paper feeding system is suitable for various cotton materials, such as cotton, linen, polyester, silk, etc., all of these can achieve high quality printing.

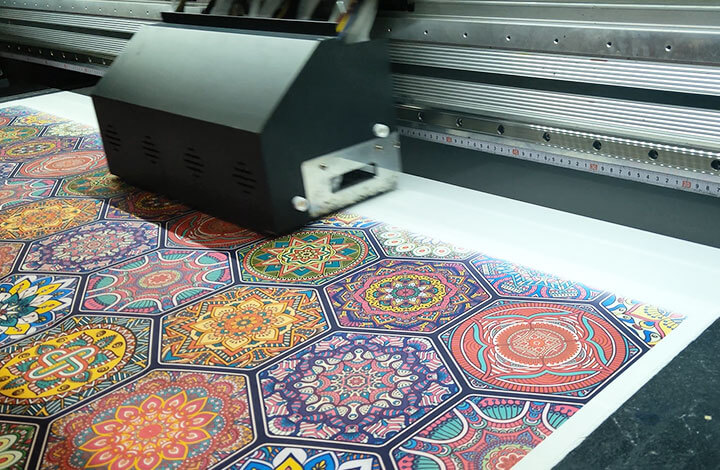

    • Advanced Digital Direct Printing Technology

      The advanced digital paint direct printing technology realizes nice touch feeling, good ventilation and high-quality printing effect on dark cotton fabric.

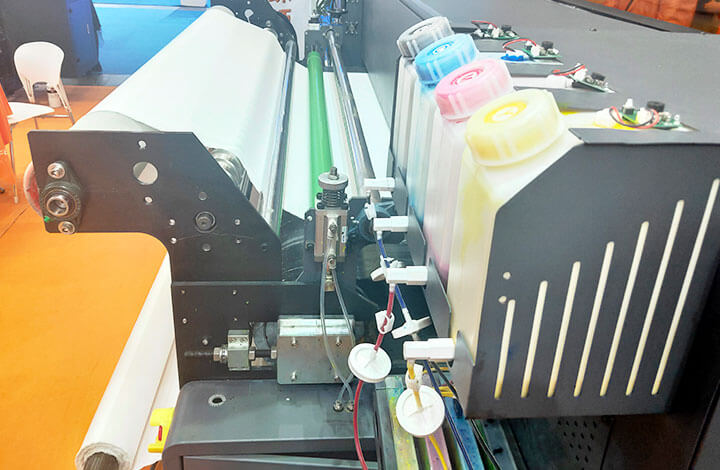

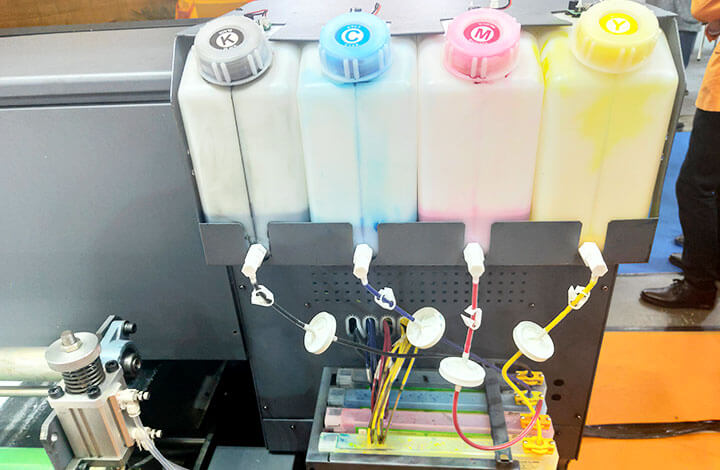

    • Bulk Ink Supply System

      Large-capacity continuous ink supply system and environmentally friendly high-quality pigment ink to ensure the stability of color, and the color is still bright after repeated washing and drying.

    • EPSON Micro Piezoelectric Industrial Print Head

      High-precision EPSON Micro piezoelectric industrial print head ensures digital printing, even in the high-end market, can also obtain higher profit margins and simple operation.

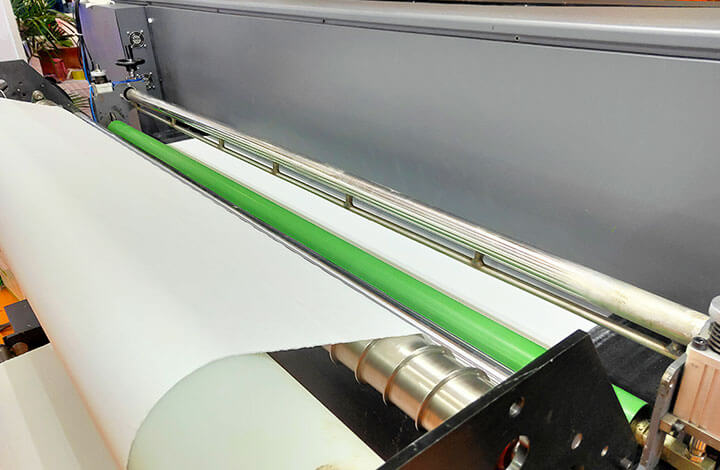

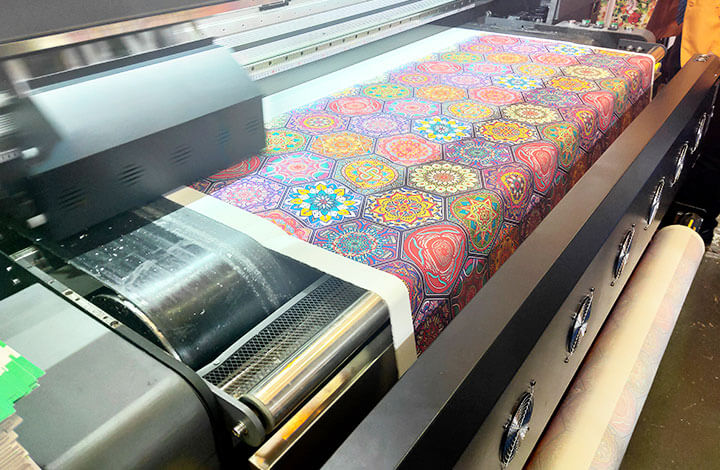

    • High-Precision Printing Platform

      Industrial-grade high-precision printing platform can meet the production needs of different customers, and the guide belt is free of deviation correction. Perfect printing quality, high precision, strong color expression, FD1862E Digital Textile Belt Printer adopts thick aluminum profile which makes the structure is firm.

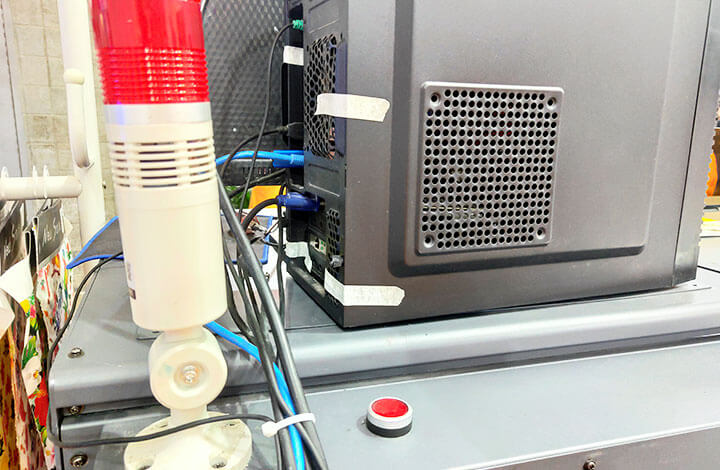

    • Intelligent Ink Shortage Alarm System

      Intelligent ink shortage reminder, reduce the tediousness of frequently checking the remaining amount of ink, and at the same time promptly add ink to ensure the continuity of printing work.

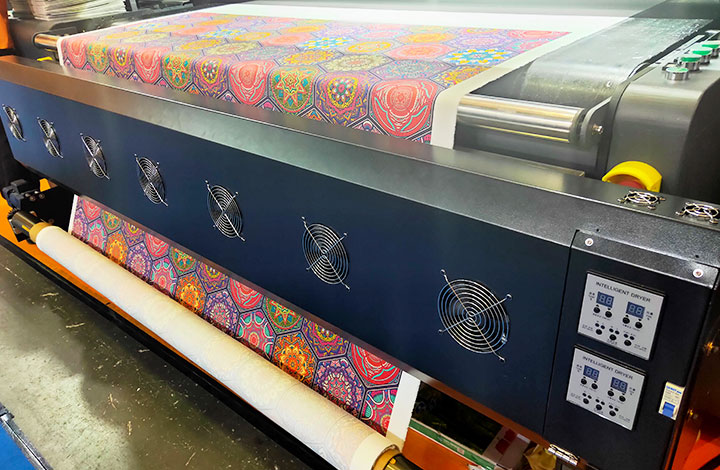

    • Intelligent Drying System

      Intelligent drying system, synchronized with printing, energy saving and emission reduction, the temperature can be adjusted in time according to the actual situation during the printing process. Optional dryer or furnace machine.

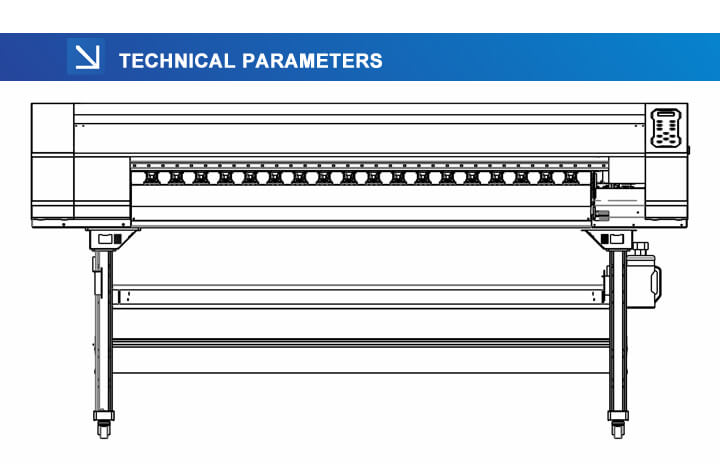

    • Technical Parameters

      Model: FD1862E
      Printing Width: 1800mm
      Print Head: Six Epson 3200 Heads
      Printing Speed: 2pass: 160 Sqm/Hr
                       4pass: 92 Sqm/Hr
                       6pass: 60 Sqm/Hr
      Interface: Gigabit LAN
      Print Media: Cotton Liner Polyester Silk
      Drying Method: Extra Dryer Device
      Ink Type: Pigment Ink, Disperse Ink
      RIP Software: Maintop, Onyx, Photo Print
      Ink Supply Method : Bulk Ink Supply System
      Printing File Forms: TIFF, JPG, EPS, PDF, etc.
      Media Transfer: Auto Taking-Up Media Device
