FD5198E (8 heads*1900mm)

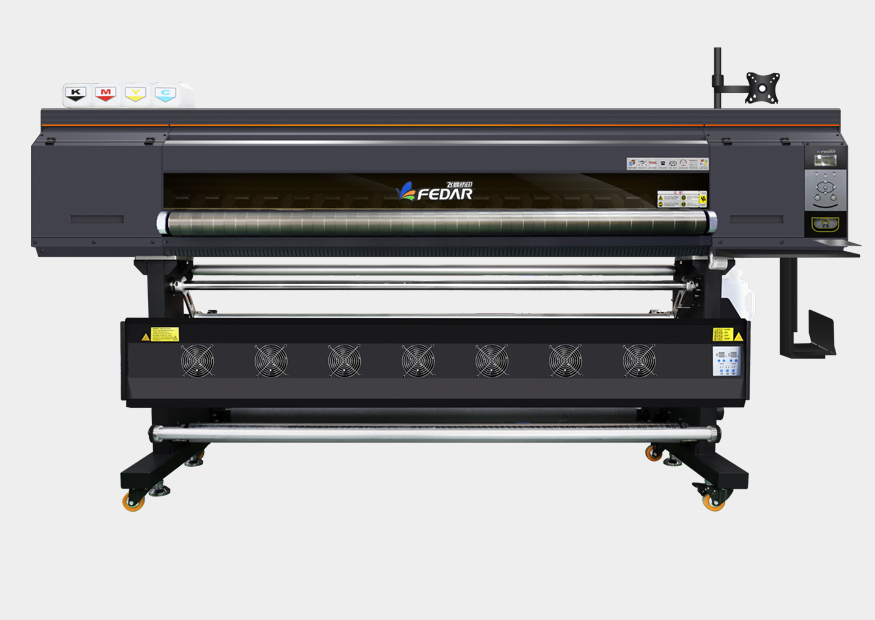

Model: Fedar FD5198E Sublimation Printer



Max Printing Width: 1900mm



Printer Head: 8 Epson I3200-A1 Heads



Max Printing Resolution: 3200DPI



Max Printing Speed: 370 Sqm/Hr (Single Pass)

product overview

    Mode

    FD5198E Sublimation printer

    Printhead

    Type: EPSON I3200-1 Printhead    Printhead Quantity: 8      Nozle Quantiy: 3200

         Print Speed

    360*1200dpi        1PASS:  370m²/h     360*2400dpi        2PASS:  185m²/h

    Ink Type

    Type: Sublimation Tnk     Color: CMYK(Optional 8 ColorS)

    Print Width

    1900mm

    Print Media

    Transfer Paper

    Media Transmit

    Pinch Roller Mode

          Dryer

    Extra intelligent Dryer Device

    Moisture Mode

    Full Seal Auto Moisture and Cleaning

    Rip Software

    Maintop, FlexiFRINT, ONYX, Neostampa and etc. Maintop6.1(standard Equipped)

    Image Format

    JPG, TIF, PDF, etc.

    Computer Configuration

    Computer Systerm: Win7 64Bits  Win10 64Bits, Hard Disk: 500G or more

    RAM: 8G, GPU: ATI Mobility    Memory 4G, CPU: Intel i7 Processor

    Transmission Interface: Giga-bit Ethernet Port

    Standard Configuration

    Intelligent Drying System, Liquid Level Alarm System, Waste Ink Alarm System

    Working Environment

    Temp.: 18%C-30'C, Humidity: 35%-65%

    Powder Supply

    Input Voltage: 210-230VAC     Machine Printing Power: 4.4KW     Dryer: Max 7.2KW

    Machine Size

    Dimension: 3550*1335*1800mm     Packing: 3670*1270*2110mm

    Print Head of Fedar FD5198E Printer

    Fedar FD5198E Sublimation Printer uses 8 Original Epson I3200-A1 Print Heads. Max Resolution: 3200DPI. Max Printing Speed: 370 Sqm/hr. The printing speed can be more than 370 Sqm/hr, it uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite.

    • Capping Station of Fedar FD5198E Printer

      Fedar FD5198E sublimation printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient.

    • Printing Carriage of Fedar FD5198E Printer

      The height of the double-head nozzle independently developed can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

    • FD5198E Sublimation Printer High-precision Platform

      Fedar FD5198E sublimation printer printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

    • FD5198E Sublimation Printer Ink Tank

      Fedar FD5198E sublimation printer uses four super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

    • Fedar Printer Ink Shortage Alarm System

      Fedar FD5198E Sublimation Printer use Fedar ink shortage system, reduces the tediousness of frequently checking the remaining ink, and promptly reminds to add ink to ensure the continuity of printing work.

    • Fedar FD5198E Printer use Stable Fedar Printing System

      Fedar FD5198E use Stable Fedar Printing System. The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

    • Fedar FD5198E Printer use Heavy Type Feeding and Taking-up Device

      Fedar FD5198E use Haevy Type Feeding and Taking-up device with tension sensor bar ,make the force even and make the paper more smooth. It's sample and convenient to take up printed media.

    • FeDAR fd5198e Printer Intelligent Dry System

      Dry System of Fedar FD5198E sublimation printer of synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.

    • Industrial Design of Fedar FD5198E sublimation Printer

      Fedar FD5198E Sublimation Printer frame is welded with square steel, industrial grade design, the whole structure is strong and stable, which ensures that the equipment is stable and does not shake during the high-speed printing process.

    • Technical Parameters

      Model: Fedar FD5198E Sublimation Printer
      Printing Width: 1900mm
      Print Head: 8 Epson 3200 Heads
      Printing Speed: 1pass: 370 Sqm/Hr
      2pass: 185 Sqm/Hr
      Interface: Gigabit LAN
      Print Media: Transfer Paper
      Drying Method: Extra Dryer Device
      RIP Software: Maintop, Onyx, Photo Print
      Ink Supply Method : Bulk Ink Supply System
      Printing File Forms: TIFF, JPG, EPS, PDF, etc.
      Ink Type: Sublimation Ink, Water Based Dye Ink
      Media Transfer: Auto Tension Taking-Up Media Device
