FD5193E (3 heads*1900mm)

Model: Fedar FD5193E

Max Printing Width: 1900mm

Printer Head: 3 Epson I3200-A1

Max Printing Resolution: 3200DPI

Max Printing Speed: 160sqm/h

product overview

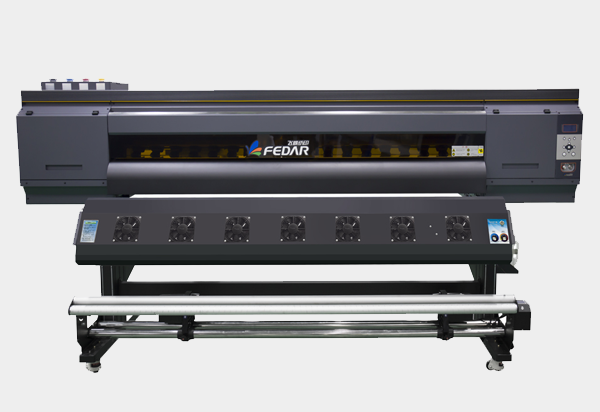

    Fedar FD5193E Sublimation Printer

    Printing Size 1900mm
    Printhead  3 EPSON Original I3200-A1 Heads
    Max Resolution 3200DPI
    Ink Color

    Double C M Y K

    Ink Type

    Water-Based Ink, Pigment Ink, Sublimation Ink

    RIP Software


    Interface Gigabit Port

    Print File Format

    BMP, TIF, JPG, PDF Etc.
    Heating System

    Extra Front Heating System

    Feeding Method

    Roll to Roll, Leaf

    Color Management ICC Based; Density & Curves Adjustable
    Power Supply

    50HZ/60HZ, 110~220V, 10A

    Package Size (L*W*H) 3360*850*1110mm
    Working Size (L*W*H) 3180*1100*1700mm
    Gross Weight 400KGS
    Working Environment Temperature 20C-35C (68F-95F)
    Working Environment Humidity 35%-65%Rh
    Printing Speed
    2pass 160 Sqm/H
    3pass 110 Sqm/H
    4pass  80  Sqm/H

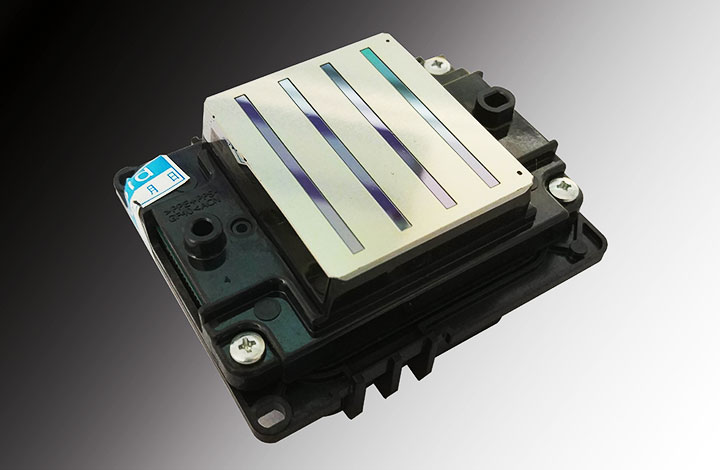

    • Print Head

      Fedar FD5193E Dye Sublimation Printer uses three Epson 3200 printing heads. Its nozzle has 4 pairs of nozzle holes, a total of 8 columns, each column has 400 nozzle holes, that is totally including 3200 nozzle holes, max resolution: 3200DPI. Max Printing Speed: 120Sqm/H. The printing speed can be more than 40Sqm/h, it uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite. The Epson3200 head adopts automatic cleaning and automatic flash spray function to prevent blockage.

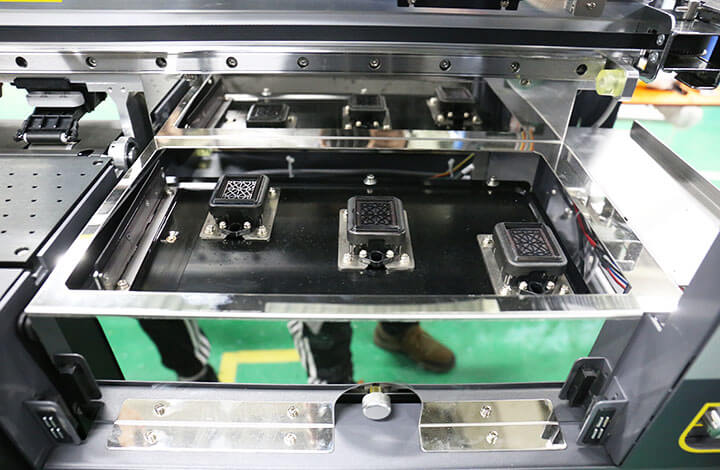

    • Capping Station

      FD5193E sublimation printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.

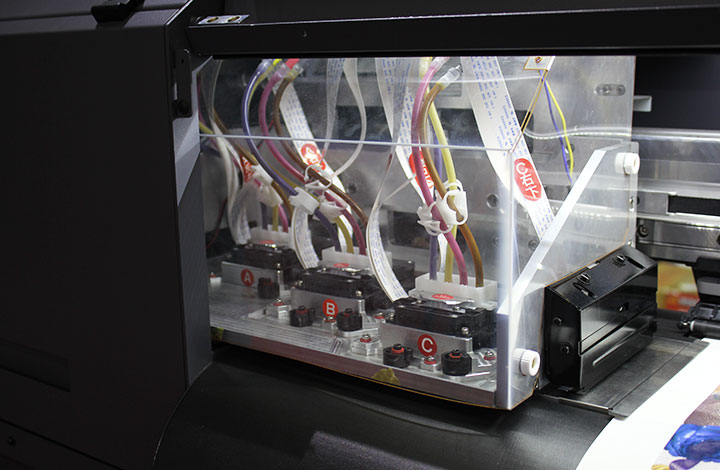

    • Printing Carriage

      The height of the double-head nozzle independently developed can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

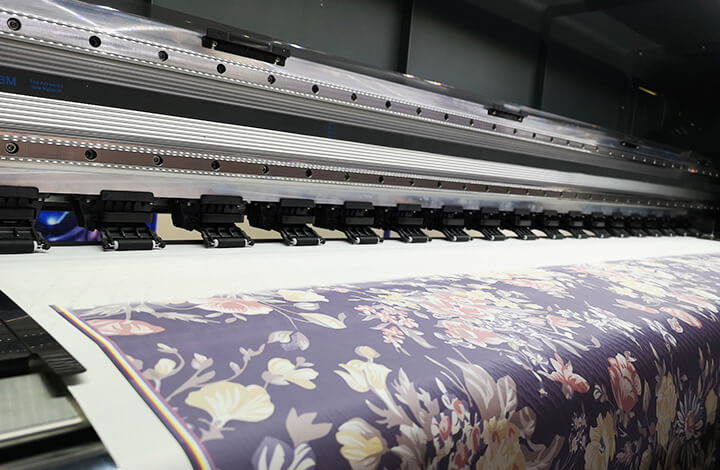

    • High-precision Platform

      The assembly precision of FD5193E sublimation printer printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

    • Ink Tank

      FD5193E sublimation printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

    • Intelligent Ink Shortage Alarm System

      Intelligent ink shortage system reminding, reduces the tediousness of frequently checking the remaining ink, and promptly reminds to add ink to ensure the continuity of printing work.

    • Stable Fedar Self-printing System

      The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

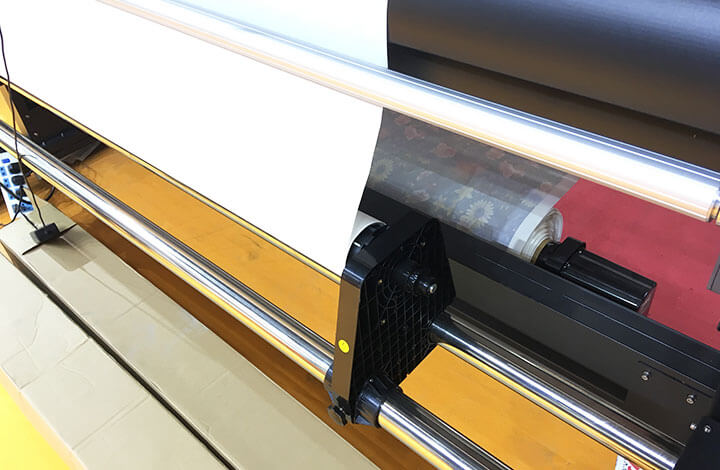

    • Auto Feeding and Taking-up Device

      This auto feeding and taking-up device with tension sensor bar ,make the force even and make the paper more smooth. It's sample and convenient to take up printed media.

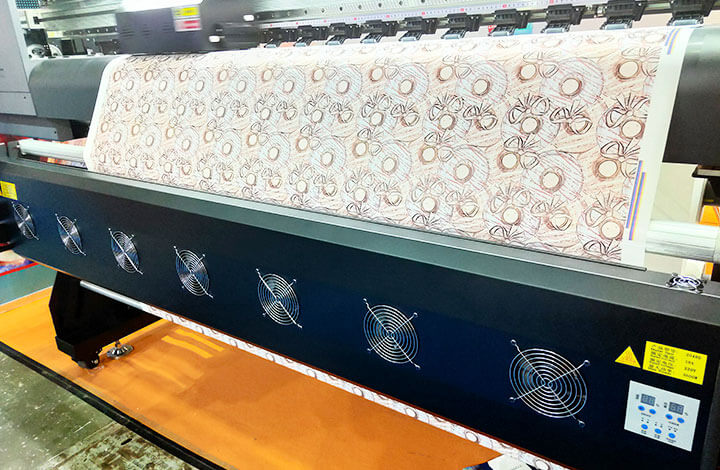

    • Intelligent Dry System

      Dry System FD5193E sublimation printer of synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.

    • Industrial Design

      The whole frame is welded with square steel, industrial grade design, the whole structure is strong and stable, which ensures that the equipment is stable and does not shake during the high-speed printing process.

    • Technical Parameters

      Model: FD5193E
      Printing Width: 1900mm
      Print Head: Three Epson 3200 Heads
      Printing Speed: 3pass: 85 Sqm/Hr
      4pass: 65 Sqm/Hr
      6pass: 45 Sqm/Hr
      Interface: Gigabit LAN
      Print Media: Transfer Paper
      Drying Method: Extra Dryer Device
      RIP Software: Maintop, Onyx, Photo Print
      Ink Supply Method : Bulk Ink Supply System
      Printing File Forms: TIFF, JPG, EPS, PDF, etc.
      Ink Type: Sublimation Ink, Water Based Dye Ink
      Media Transfer: Auto Tension Taking-Up Media Device
